Semi-automatic Plastic Sheet Index Tab Cutting And Lamination Machine

Dongguan Nan Bo Mechanical Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

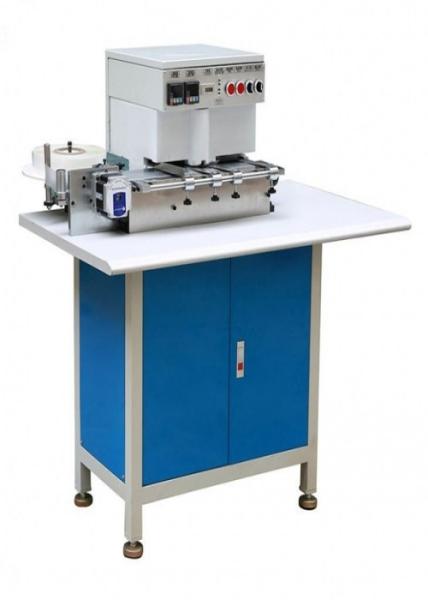

Semi-automatic Plastic Sheet Index Tab Cutting And Lamination Machine

Brand Name : NanBo

Model Number : NBL-1

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10 sets per month

Delivery Time : 15 days

Packaging Details : one machine pacakge into one wooden export box ,box size 1200*800*1100mm

Item : Mylar Tabbing Machine

Max Tape Size : 330x300mm

Min Tape Size : 110x85mm

Gluing Width : 24-41mm

Gluing Length : 10-110mm

Gluing Time : 0.5-1.4sec

Working Speed : 2400-3000

Air compressor : 1.5kw

Pneumatic : 6-8 pa

Power : 220v/1ph/50Hz

Machine Dimension : 1160x700x1070mm

Machine Weight : 130kg

Contact Now

NBL-1 Semi-automatic Plastic Index Sheet Adhesive Mylar Tabbing Machine

Main features of index tab die cutting machine:

1. Working Speed 2400-3000

2. No need to change tools for laminating tabs in different widths

3. Max Tape Size 330x300mm

4. Min Tape Size 110x85mm

5. Feeding with stepper motor with length error 1mm.

6. imported pneumatic component with good stability.

Mylar Tabbing Machine's specification

Max tape size(width*length) 330*300mm
Min tape size(width*length) 110*85mm
Gluing width 24-41mm
Gluing length 10-110mm
Gluing time 0.5-1.4sec
Temperature 50-100c
Speed(depend on operator's skill) 2400-3500
Worktable dimension(width*length) 950*160mm
Air compressor(user prepared by self) 1.5kw
Pneumatic 6-8pa
Power 220v/1ph/50Hz
Machine Dimension 1160*700*1070mm
Machine Weight 130kg

Mylar Tabbing Machine's Advantages:

1: Easy to operate and Control,speed can be up to 2400pcs/hour

2: Stick Various width of index tab without changing mold

3: It can be used as index tape inserting machine by changing some device

4: Max index tape length:330mm

Semi-automatic Plastic Sheet Index Tab Cutting And Lamination Machine

Semi-automatic Plastic Sheet Index Tab Cutting And Lamination Machine

Semi-automatic Plastic Sheet Index Tab Cutting And Lamination Machine

Our company advantages: we can supply after printing all kinds of full binding system:

1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture

double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.

2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

and binding notebook at the same time

3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.

Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after

you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small

problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your

company help you to solve.

Our factory mainly produce two party of after printing products:

1: After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine.

Mylar Tab Lamination Machine

2: Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger

Plastic Binding Comb

Warmly Welcome you call us @008613712492952
